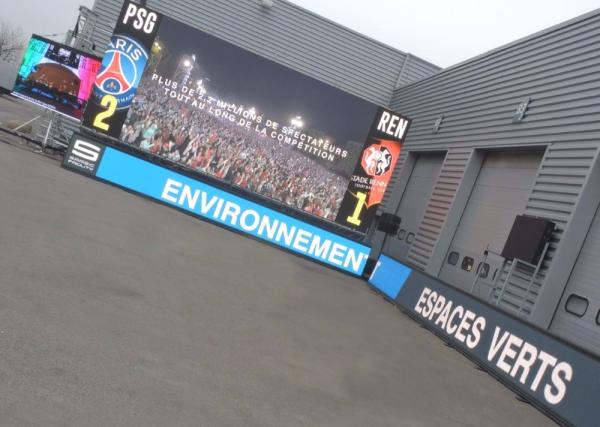

Font IP65 P8mm 6000nits Stadium Perimeter Led Display FIFA Standard
Quick Details:
1, Pixel Pitch: 8mm.
2, Refresh rate: 1,920Hz.
3, SMD, viewing angle: 160°/ 160°.
4, Meanwell driver, 3years warranty.
5, Aluminium cabinet, stadium, rental dual usage.
6, Standard cabinet size: 960×960x150mm, customized cabinet:
1280x960mm or 1920x960mm.
Features and Advantages:
High Brightness and Saving Energy
Outdoor HD led display leader,very mature product,each type is at
least 2 years ahead of the industry.
Using the high brightness led light with the lowest consumption,
saving energy ≥30%, with 28 core technologypatent, whole saving
energy≥50%, energy saving and environment protection.
Adopt general led module series with core technology, make it
possible for customer to upgrade the screen to smaller pixel
pitch,Increase the secondary marketing opportunity and maintain
good relationship.
Support Format Low Cost Installation
Broadct color gamut, intelligent adjustment for color temperature
and brightness.Uniform color, high contrast, the picture is vivid
and nature.
Support main displaying format, workable for DVI HDMI 3G/HD/SD SDI
display format.
Modularized design,low cost for installation and maintenance, easy
to operate,support hot plugging.
Double Security Strong and Flat
IP65 for rear and back side, fit for naked installation without
decoration.
Dual backup for power supply and system,double security.
The surface is dark black, strong and flat, UV-resistancemodule
components,make the screen keep flat.
Application places
Stadium, Football Field, Sports.
Parameters:
| Parameter | Unit | Value |
| Brightness | nits | 6000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 50 |
| Cabinet width | mm | 960 |
| Cabinet height | mm | 960 |
| Cabinet depth | mm | 150 |
| Cabinet area | sq. m. | 0.92 |
| Cabinet material | | Cold Steel |
| Aspect ratio | | 4:3 |
| Ingress protection (Front/Rear) | IP | IP65/IP54 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 8 |
| Pixel matrix per cabinet | | 120x120 |
| Pixels per cabinet | | 14400 |
| Lines per meter | | 125 |
| Pixels per sq. meter | | 15625 |
| LEDs per sq. meter | | 15625 |
| Recommended minimum viewing distance | m | 8 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 850/290 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
