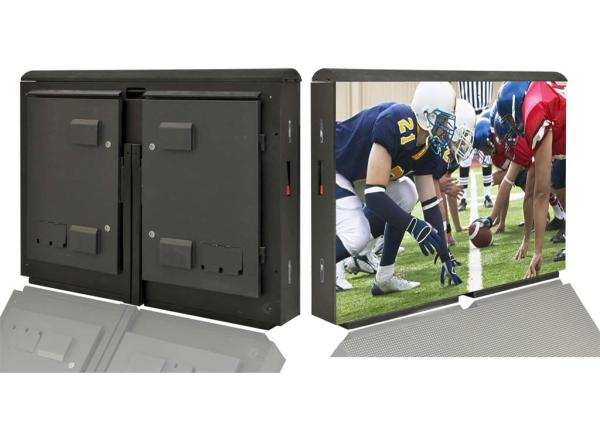

High Resolution 1920hz P8 Led Screen , Sports Perimeter LED Display
1920x960mm
Application:
P8 Outdoor Sport Perimeter Stadium LED Display Screen with High
Resolution 1920Hz are the most classic design of led stadium
perimeter, it's durable, reliable and easy to use, widely applied
for all kinds of football, basket ball stadium.
Features and Advantages:
1. Top Cabinet Special Design for Collision Avoidance.
2. Adjustable Soleplate Design, Cabinet Freely Regulated Angle
55°to 90°.
3. Back door and Cabinet Façade parallel, Simple and Practical.
4. Stowable Regulating Bracket, Saving Storage Space.
5. Separation of Inside Power Supplier and Control System Ensures
Easy Maintenance.
6. Safe, Convenient and Quick.
7. Power Supplier and Signal Plug Connectors, International
Standard.
Pictures
| Brightness | nits | 6000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 50 |
| Cabinet width | mm | 960 |
| Cabinet height | mm | 960 |
| Cabinet depth | mm | 150 |
| Cabinet area | sq. m. | 0.92 |
| Cabinet material | | Cold Steel |
| Aspect ratio | | 4:3 |
| Ingress protection (Front/Rear) | IP | IP65/IP54 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 8 |
| Pixel matrix per cabinet | | 120x120 |
| Pixels per cabinet | | 14400 |
| Lines per meter | | 125 |
| Pixels per sq. meter | | 15625 |
| LEDs per sq. meter | | 15625 |
| Recommended minimum viewing distance | m | 8 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 850/290 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
