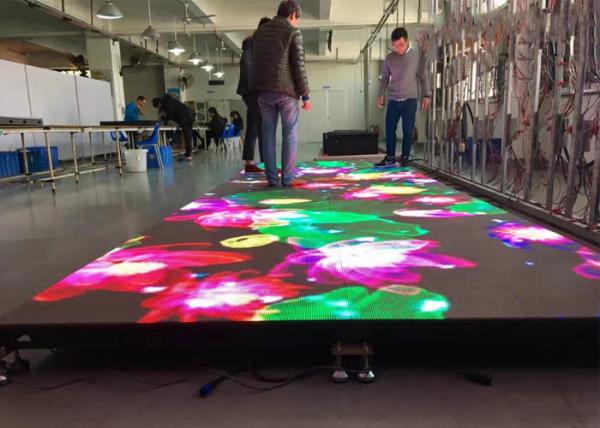

P3.91mm Led Floor Display , SMD2121 Front Maintenance Led Screen
Feature:
● Super bright LED lamp bead gold line package and A grade raw
material plastic package.
● High-end LED screen special waterproof silica gel.
● PCB adopts exclusive line design.
● The signal line and power line adopt the standard design of the
standard.
● LED lamp bead bracket pure copper bracket, red light 12MIL, blue
green 13MIL.
● The PC cover is made of anti-slip and the bearing weight is above
2T.
● Realization of human-computer interaction experience
(abbreviation: interactive effect.)
Specification:
| P3.91 Video LED Dance Floor |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | SMD2121 | 120-140mcd | 620-625nm | 140º/65º |
| 3 | Green LED | SMD2121 | 360-435mcd | 520-525nm | 140º/65º |
| 4 | Blue LED | SMD2121 | 80-100mcd | 470-475nm | 140º/65º |
| Module Specification |
| 1 | Pixel Pitch | 3.91mm |
| 2 | Pixel Configuration | 1R1G1B(3in1) |
| 3 | Module Resolution | 64 x 64 pixels |
| 4 | Module Pixles | 4096 pixels |
| 5 | Module Size | 250mm X 250mm |
| Cabinet Specification |
| 1 | Cabinet Size(W X H X D) | 500mm x 500mm x 85mm |
| 2 | Cabinet Resolution(dot) | 128 x 128 pixels |
| 3 | Module Quanity (pcs) | 4pcs |
| 4 | Cabinet Pixels | 16384 pixels |
| 5 | Pixel Density | 65410 pixels/m2 |
| 6 | Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose |
| 7 | Cabinet Weight | 6.247kg per cabinet |
| 8 | Packaging | Fly case |
| 9 | Fly Case Size | 62*56*74CM ( one case for five cabinets )/ G.W.: 56.3kg |
| Whole Screen Specification |
| 1 | Screen Brightness | ≥1200cd/m2 |
| 2 | Driving Method | Constant current |
| 3 | Best Viewing Distance | 3.91m - 40m |
| 4 | Max. Power Consumption | 1200W/m2 |
| 5 | Average Power Consumption | 500W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥1200Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥100,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Protective Scale | For indoor use, non-waterproof |
| 17 | Screen Plainness | <±1mm |
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 19 | Environment Temperature | Temperature:-20 Celsius~+60 Celsius |
| 20 | Humidity | Humidity:10%~90% RH |
| 21 | Control Mode | Synchronous display with control PC by DVI |
| 22 | Control System | Linsn, Nova-star, Colorlight or as you required |
| 23 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 24 | Interface | Standard Ethernet |
| 25 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet
cable <100m |
| 26 | Power Supply Brand | G-energy, MeanWell, Chuanglian or as you required |
| 27 | Certificate | CE, RoHS, FCC |
Why choose us ?
1. more than 10 years experience in led display industry, we have
most talented engineers to design best products for our clients;
2. "Customer first" is our belief. We promise to offer best
products with good service for our clients;
3. Top quality machines to make top quality products;
4. Strict processing procedures makes perfect product. Every
production procedure, we have QC to check the quality;
5. Most competitive price make our led displays are afordable;
6. Normally 2 years warranty, even we can offer 3 years warranty if
our clients need;
7. For key business partners, we can offer financial credit;
FQA:
- What is the payment method?
- We support a variety of payment methods, the most common is the TT;
- How about your production ability?
- We have 10 production lines with all series of automatic production
machines. Monthly production ability: 200,000pcs of led modules and
4,000sqm of assembled led displays;
- What's the controlling system?
- Our standard controlling system for this model is Linsn/ Novastar.
Also support other controlling system,like HD,Xixun,TF, Colorlight,
etc;
- Are you manufacturer or trading company?
- We are manufacturer with professional marketing and service team;
- Besides this product, may I have other options?
- Yes, my dear friend. Many thanks for finish the details of this
product. If it is not what you're looking for, you can also choose
other items. we have HD indoor led display, full color for outdoor
and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die
Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm.
We also have LED advertising player and kinds of video processor;
- Can it play HD video?
- Yes, it can realize HD video function with Linsn/nova controlling
system;
