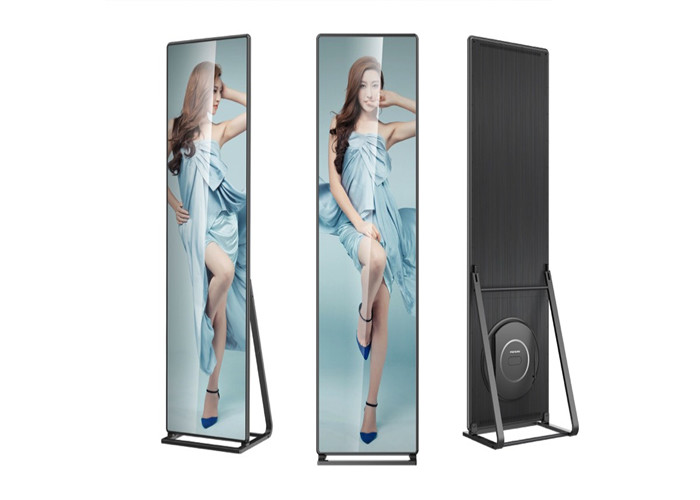

Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS
Certified
Led Poster Display Features
1. Plug and play zero setting.
2. Support Ios&Android devices.
3. Easy to operate,it can be controled by WIFI and USB,even by the
mobile APP.
4. Ultra-thin&Ultra light design,the weight is only 35kg/pcs
and the thickness is 30mm.
5. Can support 10pcs unit linked together to get a large screen
with HD 1080P.
Application
Public Places Entertainment Places.
Financial Institution Business Organizations.
Public Service Real Estate & Property.
Product specification
| Item | Technical parameter |
| Pixel Pitch | 2.5mm |
| Module Resolution | 64*64 dots |
| Module Size | 160*160mm |
| Pixel configuration | 1R1G1B |
| Module Chip | Kinglight/Nationstar |
| Driving Method | 1/32Scan |
| Physical Density | 160,000 dots/m2 |
| LED Encapsulation | SMD2121 |
| Module Port | BUH75 |
| Module Consumption | ≤16W |
| Brightness | 1200 cd/m2 |
| Cabinet Dimension | 480*1920mm |
| Cabinet External Dimensions | 535*1975*100mm |
| Cabinet Resolution | 192*768 dots |
| Quantities of module | 3*12 |
| Cabinet Flatness | Tolerance of inter pixel ≤0.3mm |
| Cabinet Material | Aluminume,Iron |
| Cabinet Weight | 38KG |
| Option Distance | 2--80M |
| Viewing Angle | Horizontal 140° Vertical 120° |
| Max. Power consumption | 675W/sqm |
| Driving Device | ICN2153IC |
| Frame Frequency | 60Hz |
| Screen Flatness | Tolerance of cabinets ≤0.6mm |
| Refresh Frequency | 1920Hz/3840Hz |
| Control Mode | Wifi asynchronization |
| Working Environment | Temperature -10℃~60℃ Humidity 10%~70% |
| Display Working Voltage | AC110V/220V , 50Hz/60Hz |
| Colour temperature | 8500K-11500K |
| Communication distance | Network cable: 100m, Multi-model: 500m, Single-model fiber: 20km |
| Gray scale | ≥16.7M |
| MTBF | >10,000 hours |
| Support video source | HDMI, CVBS, SDI , DVI etc |
Synchronized / asynchronous system
Control Methods
Plug and play, Cross-platform operation
Real time play by connecting to network;
The screen can be controlled with fixed or portable Windows,
IOS & Android devices.
The content can be refreshed and stored in built-in media player
through WIFI or USB to achieve asynchronous play.
Multi-installation Method
Multi-installation Method Suitable for lifting, wall-mounted,
floor-standing and creative installation like inclined strut
installation
