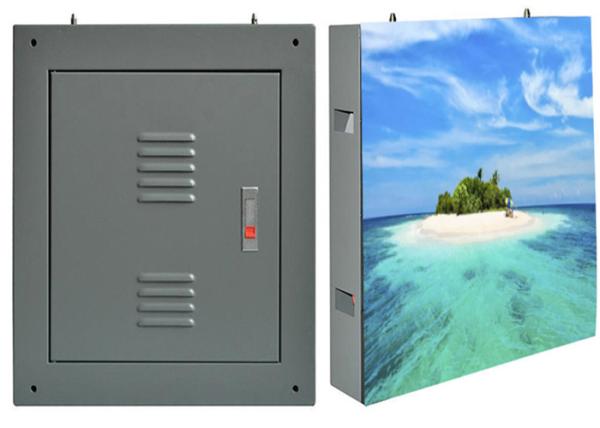

    7000nits SMD3535 P10 LED Advertising Screen High Brightness Wide Horizontal

    Ask Lasest Price
    Brand Name : OEM
    Model Number : OEM
    Certification : CE ROHS FCC UL ETL
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 ㎡/month
    Delivery Time : 15~30 days after deposit
    • Product Details
    • Company Profile

    7000nits SMD3535 P10 LED Advertising Screen High Brightness Wide Horizontal

    7000nits SMD3535 P10 LED Advertising Screen High Brightness Wide Horizontal​


    Product Features

    1. The first level LED chip from Taiwan Epistar


    2. With pure golden wire connection in LED


    3. Ag alloy solder paster to ensure good soldering on PCB


    4. Stainless steel screws when assembly


    SPECIFICATION OF Outdoor Advertising LED Display Screen


    ModelQ10
    Pixel pitch(mm)10
    ConfigurationSMD3535
    Module dimension(mm)320x160
    Module weight(kg)0.5
    Cabinet dimension(mm)960x960x120
    Pixel density(dots/㎡)10000
    Flatness error(mm)≤0.1
    Viewing angle140°/140°(Horizontal/Vertical)
    Brightness(cd/㎡)7000
    Color temperature(K)5000~9500 (Adjustable)
    Contrast4000:1
    Repetition frequency50/60Hz
    Refresh frequency(Hz)1920
    Gray scale65536
    Ave. power(W/㎡)430
    Max power(W/㎡)850
    Working temp./humidity-10~40℃/10%~80%RH
    Storing temp./humidity-20~60℃/10%~85%RH
    Cabinet materialIron/Aluminum
    MaintenanceRear
    ProtectionIP65/IP65
    Driving modeConstant current driver
    Scanning1/2
    Power requirementsAC90~264V, 47~63Hz
    Life time(hrs)100,000
    CertificateCE ROHS FCC UL ETL, etc.

    Application:Commercial Center, Advertising- Information Publish Board, Commercial Street, Railway Stations, Airports, Bus Stations, Subway, Shopping Malls, Supermarkets, Hospitals, Media Centers Etc.


    Competitive Advantages:
    1. Good quality;
    2. Good price;
    3. Good 24hours service;
    4. Promote delivery;
    5. Energy-saving;
    6. Small order accepted.





    Our service
    1) Reply your inquiry in 24 working hours.

    2) Experienced staffs answer all your query in fluent English,Spanish,French,German etc

    3) Customized design is available,OEM & ODM are welcomed.

    4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

    5) Special discount and protection of sales area provided to our distributor.

    6) Warmly welcome your visit in our company if available.

    7 ) Guidance service: We can guide on line if customers have questions about the installation and usage.
    For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer's country for on-site guidance.

    8) Warranty period: 2 years after shipment.
